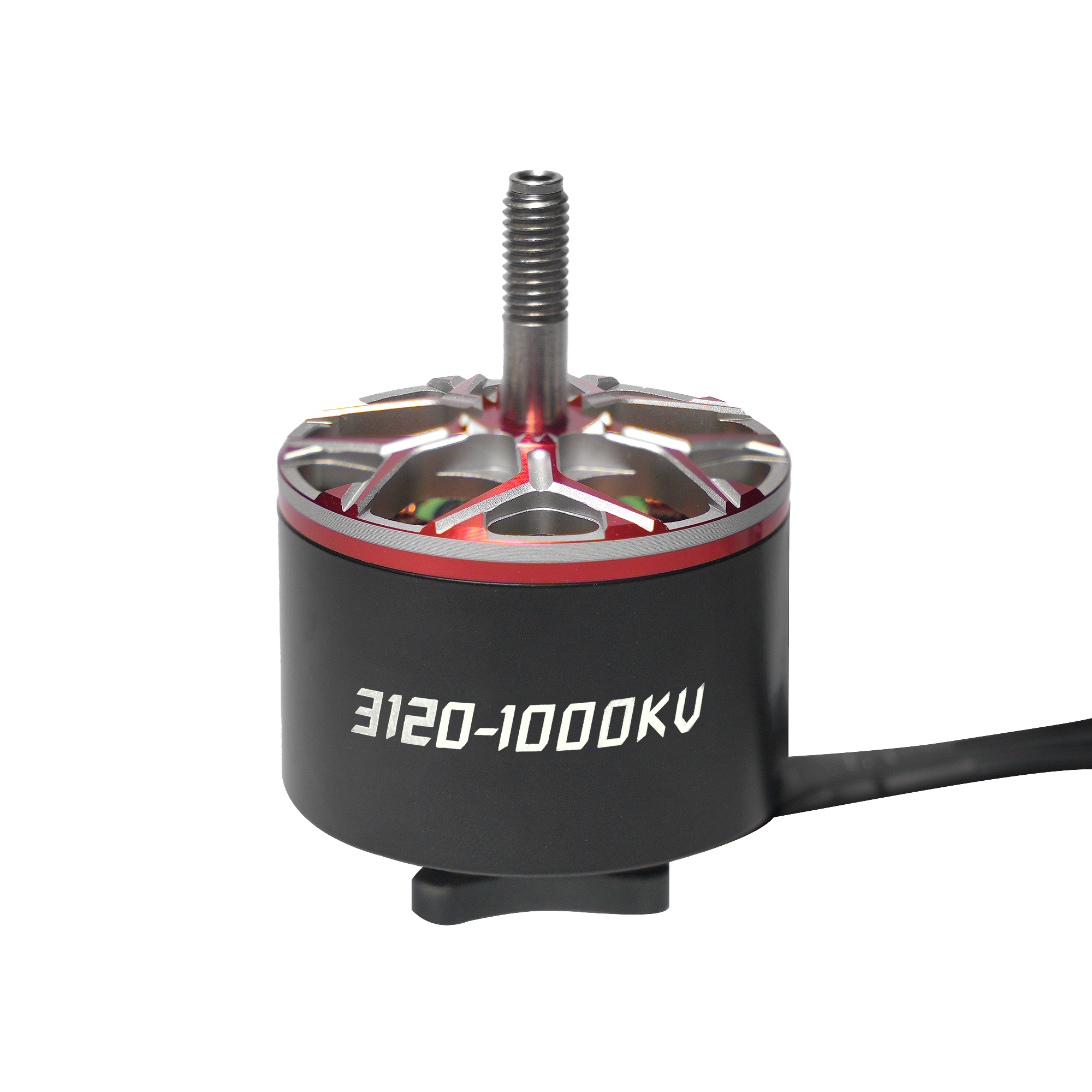

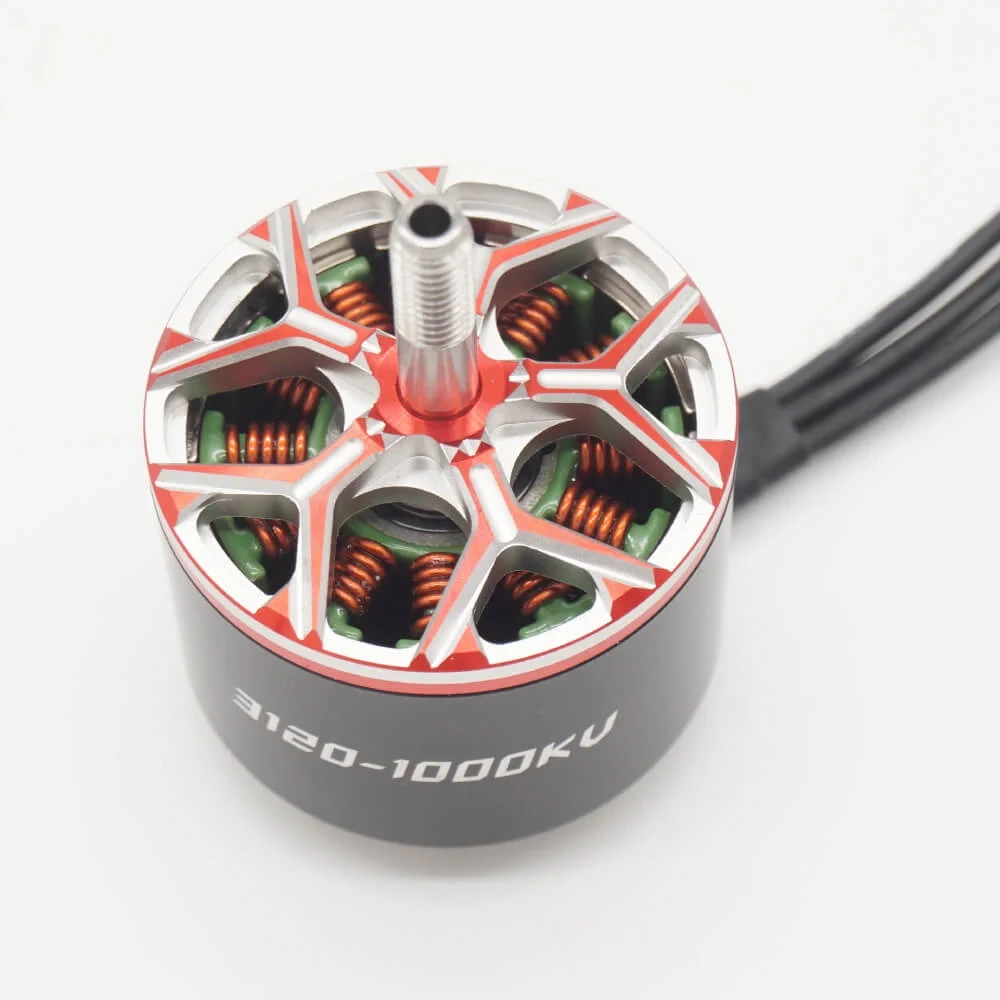

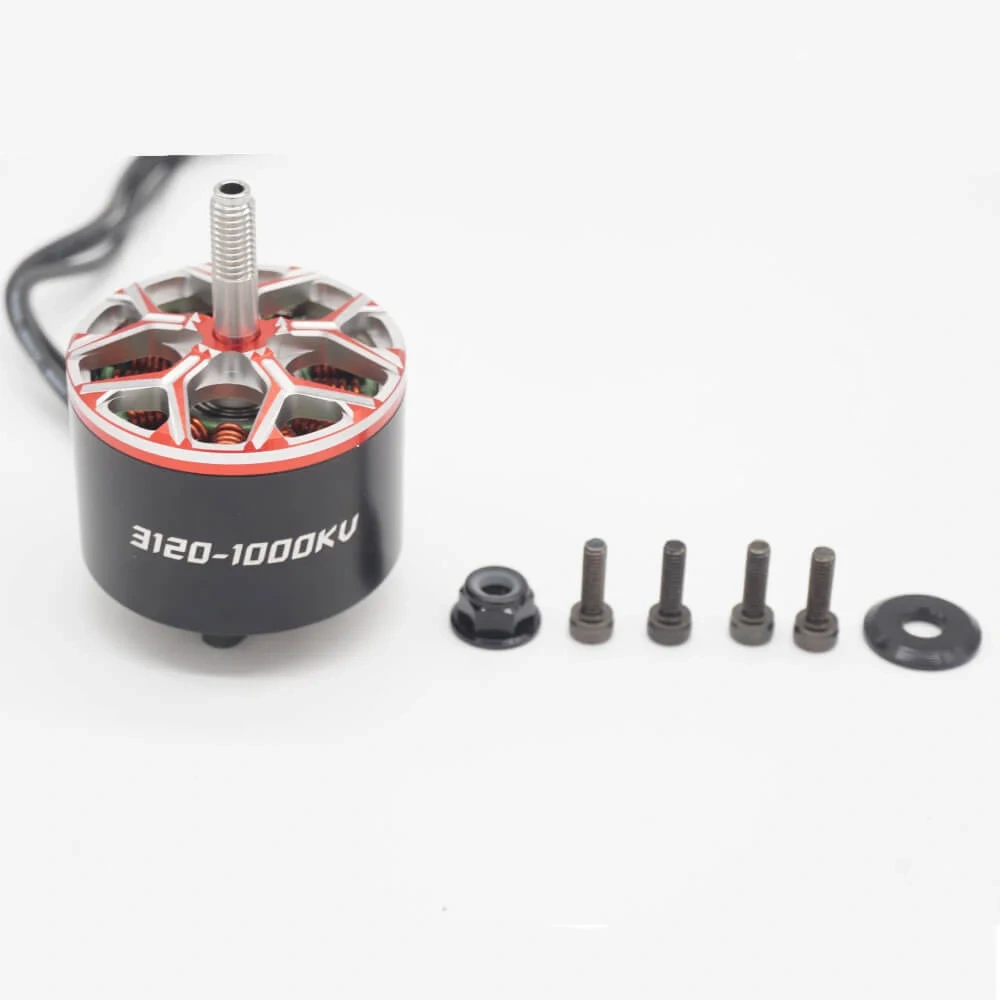

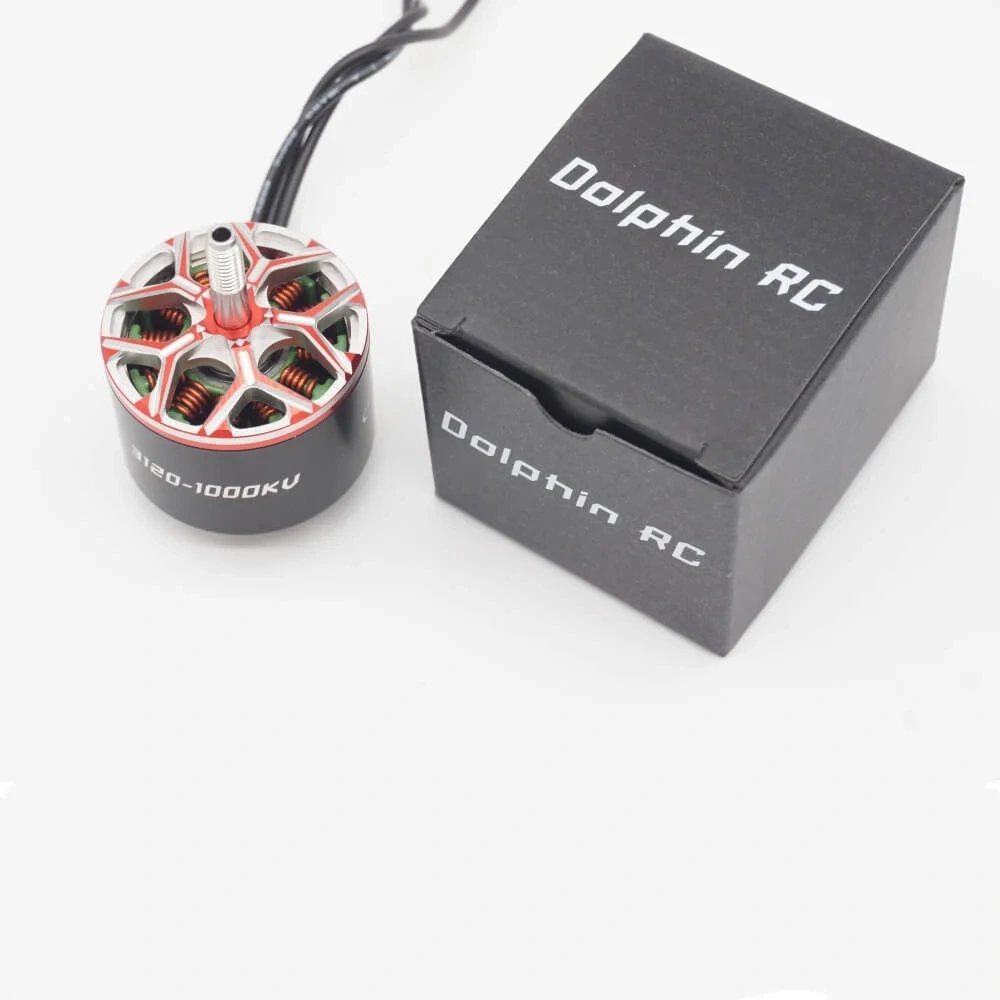

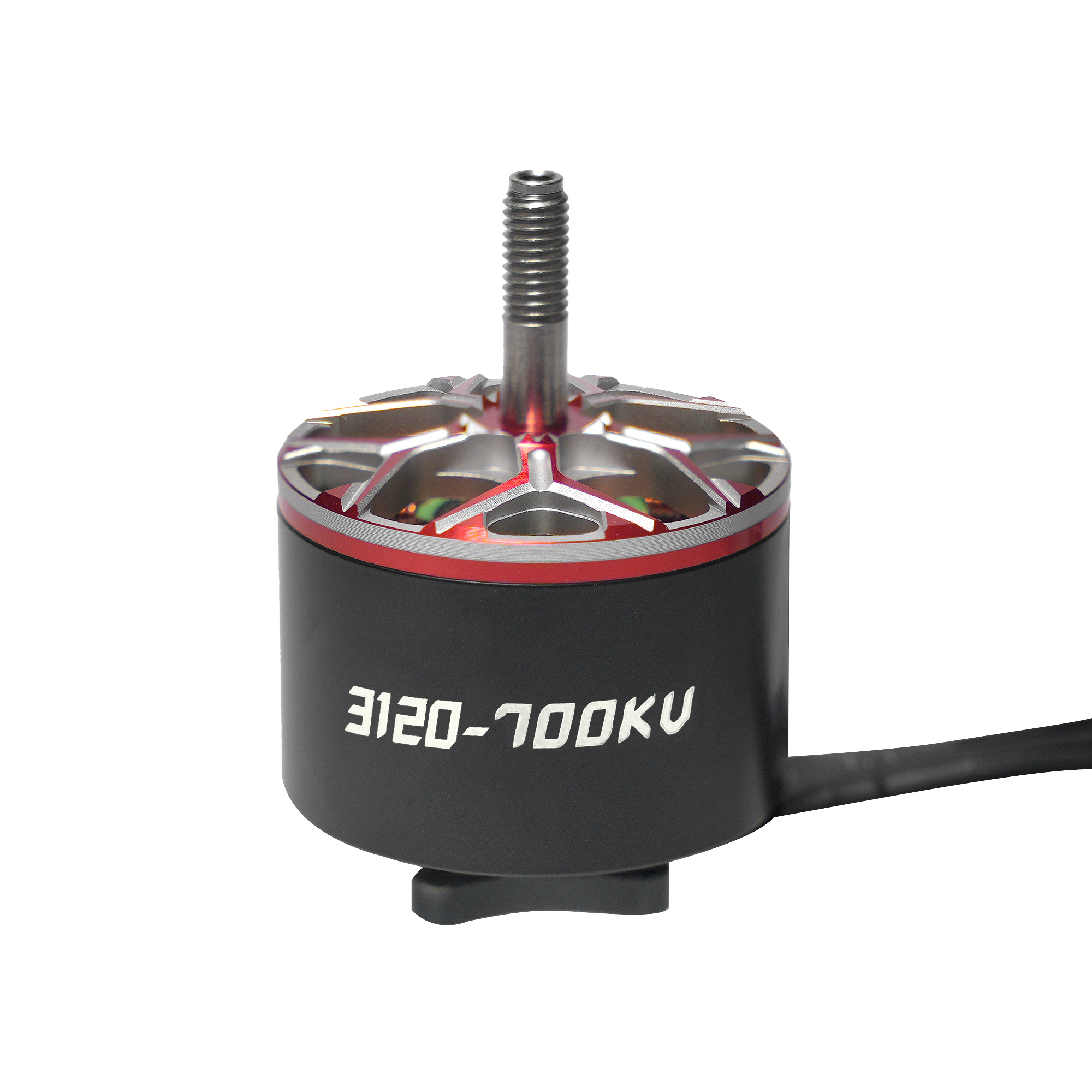

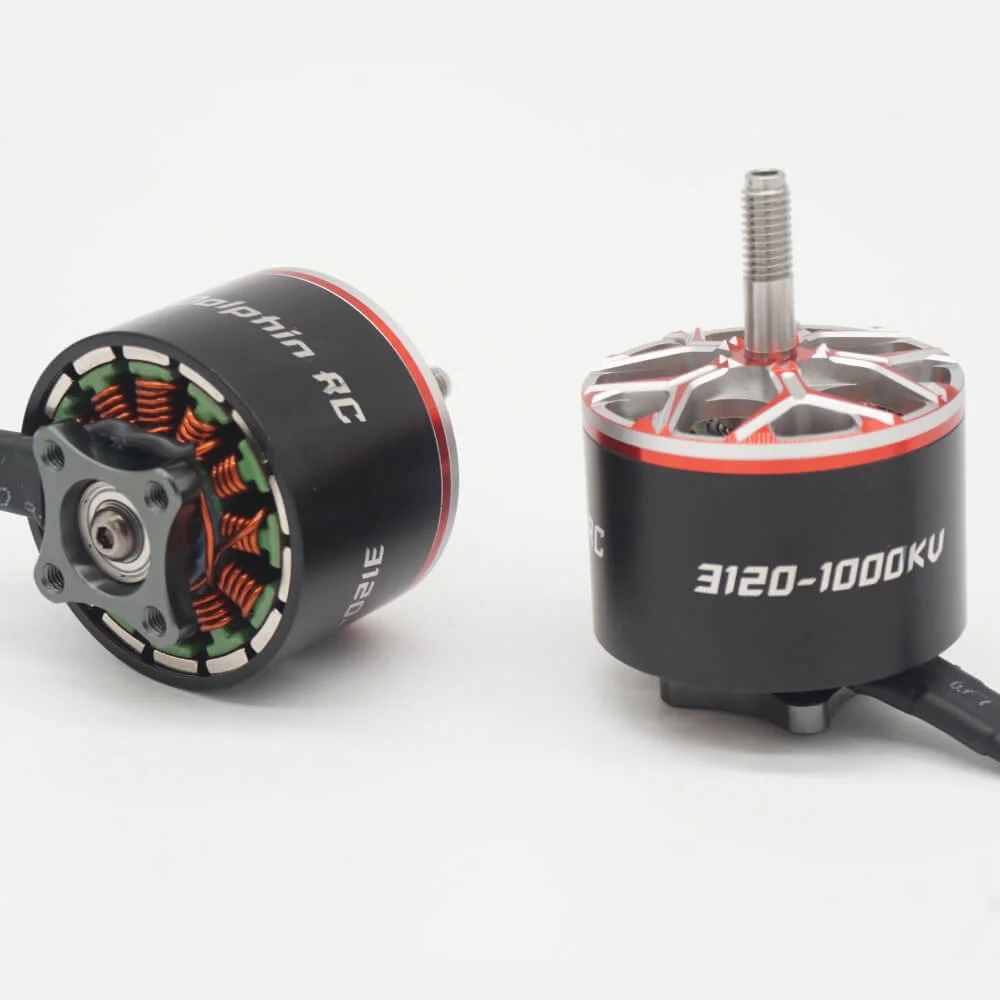

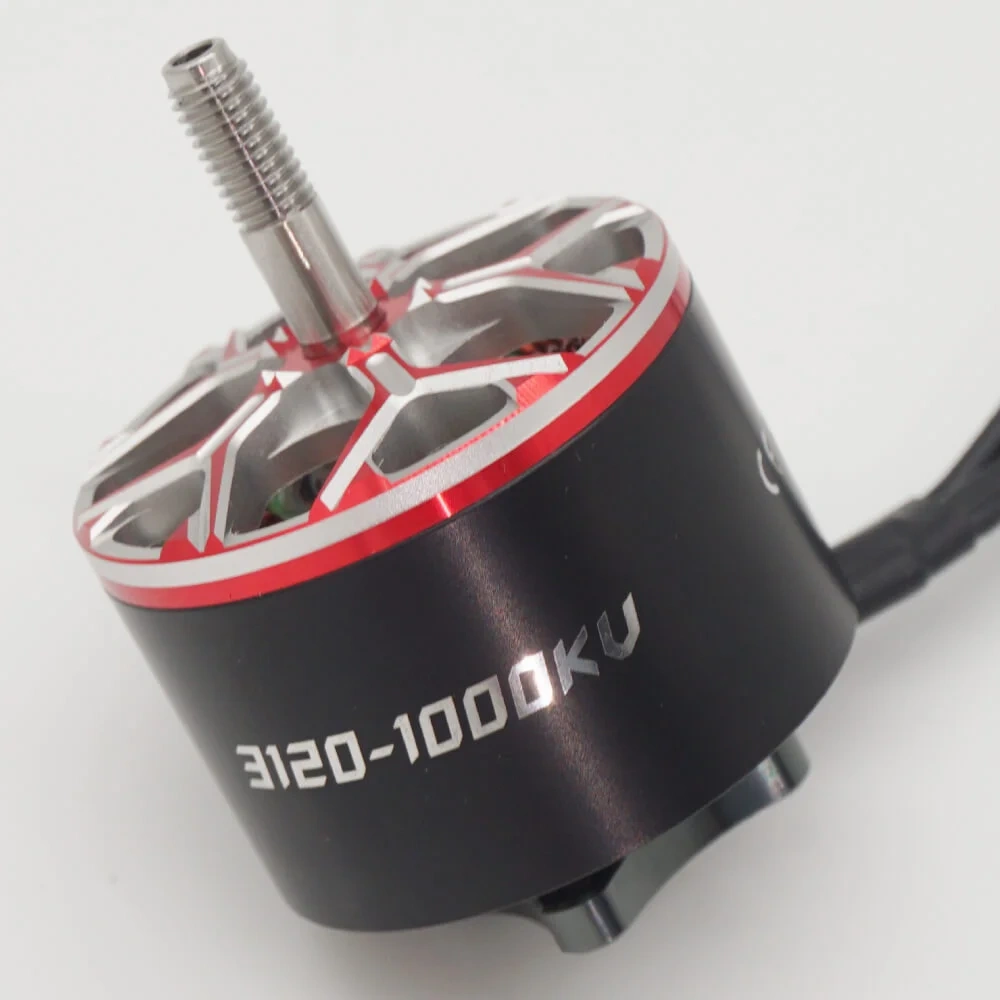

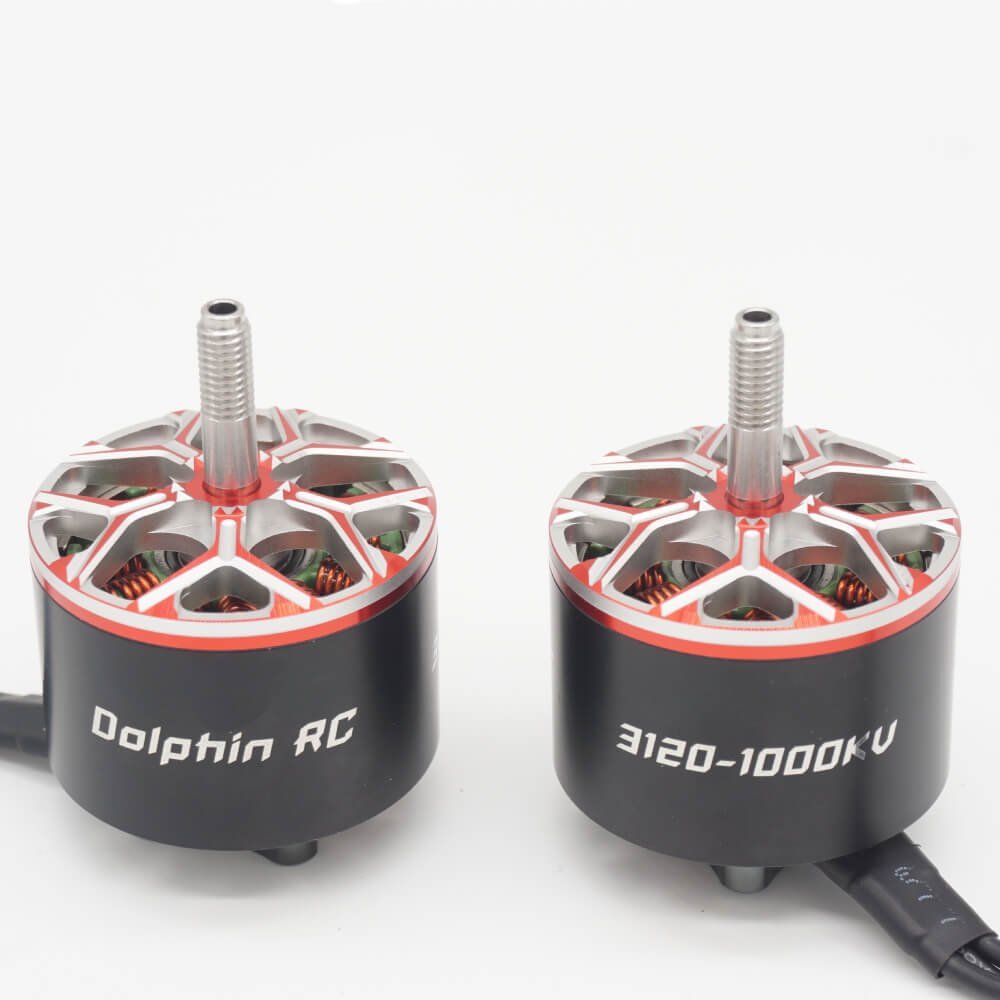

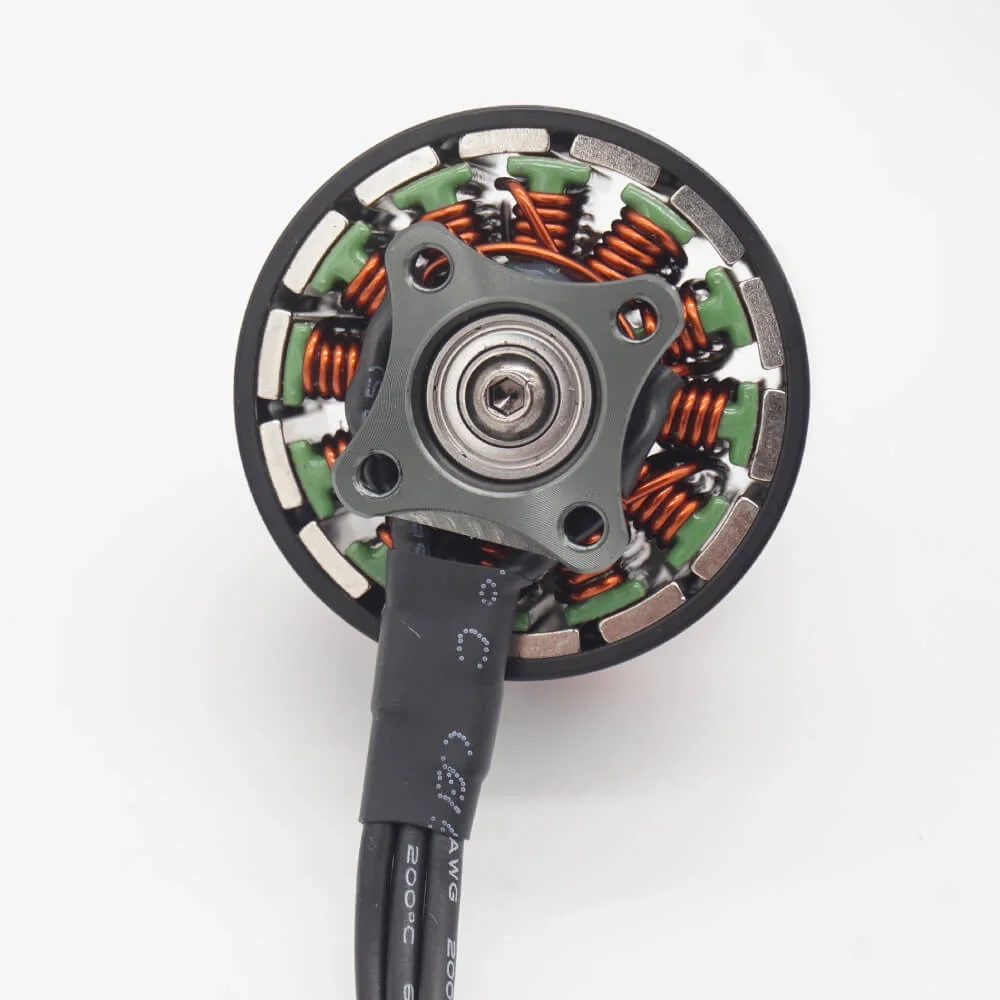

DolphinRC 3120 Brushless Motor
SKU: DPDJ00061
DolphinRC 3120 Brushless Motor
(0 Reviews)
0 Sold
1/1
Specifications
KV: 500KV/700KV/1000KV
Stator: 0.2mm Kawasaki silicon steel
Internal Resistance:58mΩ
Configuration: 12N14P
Prop Adapter Shaft Thread: M5
Shaft: Titanium Alloy hollow shaft
No. of Cells(Lipo): 8S/12S
Bolt Pattern: M3 (19X19mm)
Bearings: Japanese NMB 11x5x5 mm
Rotor: N52SH arc magnets
Weight: 133g(500KV)/131.5g(700KV)/132g(1000KV)with 25cm SR wires
Wire AWG: 18AWG 25cm length
DolphinRC 3120 1000KV motor for Load 2.5kg 6S 7 inch FPV drone Brushless Motor
| Item NO. | Propeller | Throttle | RPM | Thrust | Voltage | Current | power | Efficiency | temperature |
| (g) | （v) | (A) | (w) | (g/w) | |||||
| 螺旋桨 | 油门点 | 转速 | 拉力 | 电压 | 电流 | 功率 | 力效 | 温度 | |
| DolphinRC 3120 KV500 | GF 1308-3 | 20% | 2480.5 | 560 | 26.07 | 0.94 | 24.5058 | 22.8517 | 57° |
| 40% | 4471.5 | 1170 | 26 | 4.437 | 115.362 | 10.1420 | |||
| 60% | 6357.3 | 2110 | 25.98 | 12.522 | 325.32156 | 6.4859 | |||
| 80% | 7923.1 | 3150 | 25.76 | 25.646 | 660.64096 | 4.7681 | |||
| 100% | 9135.6 | 4179 | 25.38 | 42.349 | 1074.81762 | 3.8881 | |||
| Item NO. | Propeller | Throttle | RPM | Thrust | Voltage | Current | power | Efficiency | temperature |
| (g) | （v) | (A) | (w) | (g/w) | |||||
| 螺旋桨 | 油门点 | 转速 | 拉力 | 电压 | 电流 | 功率 | 力效 | 温度 | |
| DolphinRC 3120 KV500 | GF 1308-3 | 20% | 3027.3 | 680 | 32.91 | 1.286 | 42.32226 | 16.0672 | 72.2° |
| 40% | 5474.4 | 1620 | 32.77 | 6.47 | 212.0219 | 7.6407 | |||
| 60% | 7695.1 | 2970 | 32.56 | 18.743 | 610.27208 | 4.8667 | |||
| 80% | 9302.5 | 4280 | 32.14 | 36.34 | 1167.9676 | 3.6645 | |||
| 100% | 10474.5 | 5460 | 31.86 | 58.083 | 1850.52438 | 2.9505 | |||
| Item NO. | Propeller | Throttle | RPM | Thrust | Voltage | Current | power | Efficiency | temperature |
| (g) | （v) | (A) | (w) | (g/w) | |||||
| 螺旋桨 | 油门点 | 转速 | 拉力 | 电压 | 电流 | 功率 | 力效 | 温度 | |
| DolphinRC 3120 KV500 | GF 1310-3 | 20% | 2368.7 | 540 | 25.97 | 1.06 | 27.5282 | 19.6162 | 69.6° |
| 40% | 4305.2 | 1220 | 26.02 | 5.378 | 139.93556 | 8.7183 | |||
| 60% | 6015.1 | 2170 | 25.73 | 15.048 | 387.18504 | 5.6046 | |||
| 80% | 7399 | 3190 | 25.55 | 30.307 | 774.34385 | 4.1196 | |||
| 100% | 8441 | 4110 | 25.21 | 48.539 | 1223.66819 | 3.3588 |
